• Input Way: Floating Defibrillation Protection
• Lead: Standard 12 Leads
• Patient Leak Current: <10 µA
• Input Independence: ?50 M
• Frequency response: 0.0 Hz~150 Hz(-3dB)
• Time constant: Time constant >3.2s
• CMRR: >60dB, >100dB (Adding filter)
• EMG Interference filter: 35 Hz_ -3d B
• Recording Way: Thermal Printing System
• Recording Paper Specification: 210 mm(W) x 20 mm(L) high-speed thermal paper
• Paper Speed: Auto record: 25mm/s, 50mm/s, error ± 5 %
• Rhythm record: 25mm/s, 50mm/s,error ± 5 %
• Manual record: 5mm/s, 6.25 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s, 50mm/s error ± 5 %
• Sensitivity Selections: 5, 10, 20, 40 mm/mV, error ± 5 % standard sensitivity is 10 mm/mV 0.2 mm/mv,
• Auto Record: Record Setup according to auto record format & mode, automatically change leads measuring & analysis
• Rhythm Record: Record Setup according to auto record format & mode, automatically change leads measuring & analysis
• Manual Record: Record Setup according to manual record format, manually changing leads
• Measurement Parameters: HR, P-R interval, P Duration, QRS duration, Q Interval, Q-Tc, P Axis, T Axis, R(VS), S(V), R(V5)+S(V1)
• Product Safety Type: Class 1 CF applied part ; there is defibrillation & placing protection circuit in
• Enduring Polarization Voltage: ± 5500mV
• Noise Level: _< 15u VP-p
• Size: 334 mm(L) x 320 mm(W) x 85 mm(H)
• Power Supply / frequency: AC: 100-240V, 50/60 Hz DC :14.8 V, 3700 mAh rechargeable lithium battery

Features:

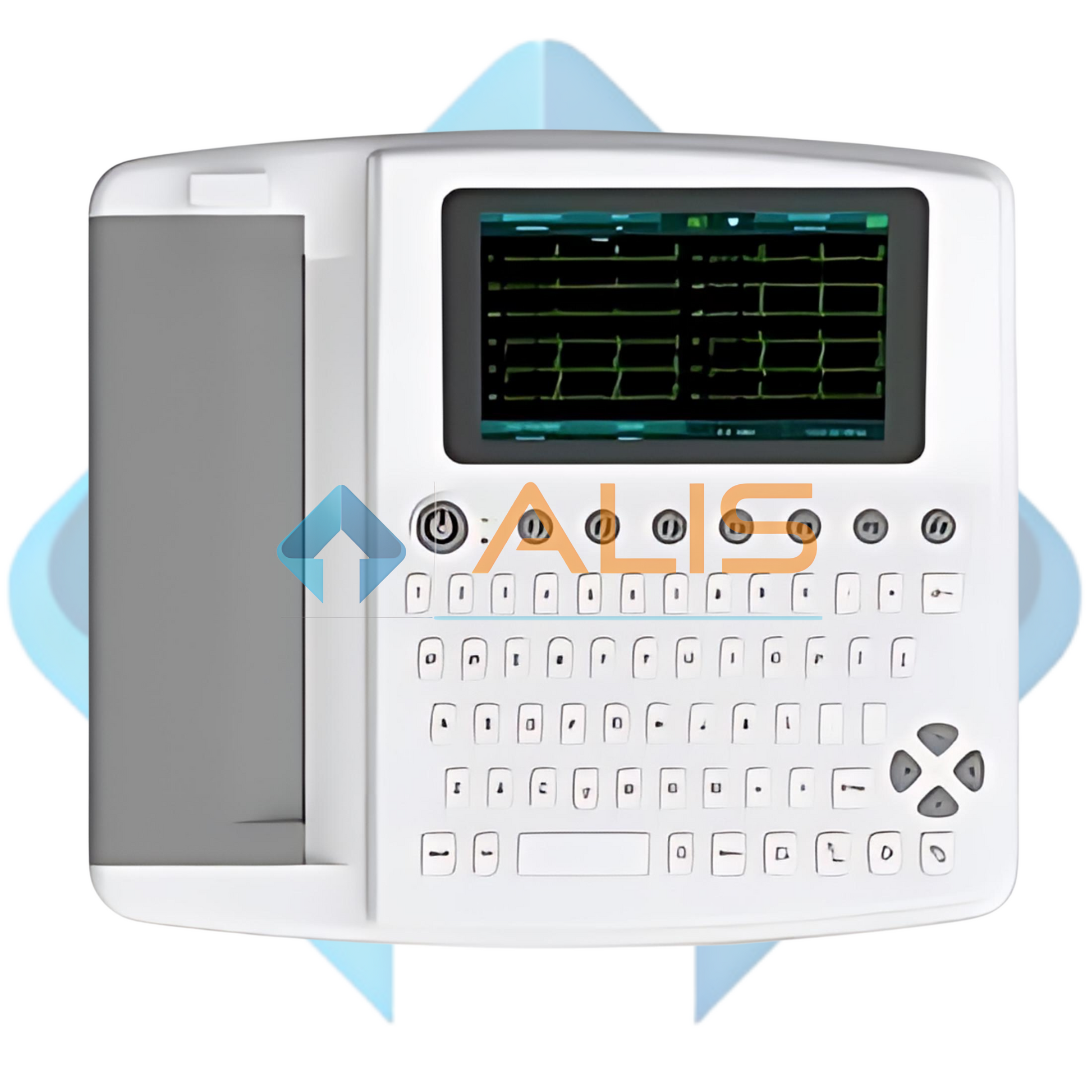

• 7 inch high resolution color touch screen.
• Full alphanumeric keyboard with shortcut keys, efficient in operation.
• Simultaneous 12 leads ECG acquisition and display.
• Automatic ECG measurements and interpretation.
• Internal storage up to 1000 cases, convenient for case review and statistic.
• Built-in rechargeable lithium high capacity battery.
• ECG data can be transmitted to PC via USB.
• ECG reports can be saved, opened, in PC via ECG playback software.
