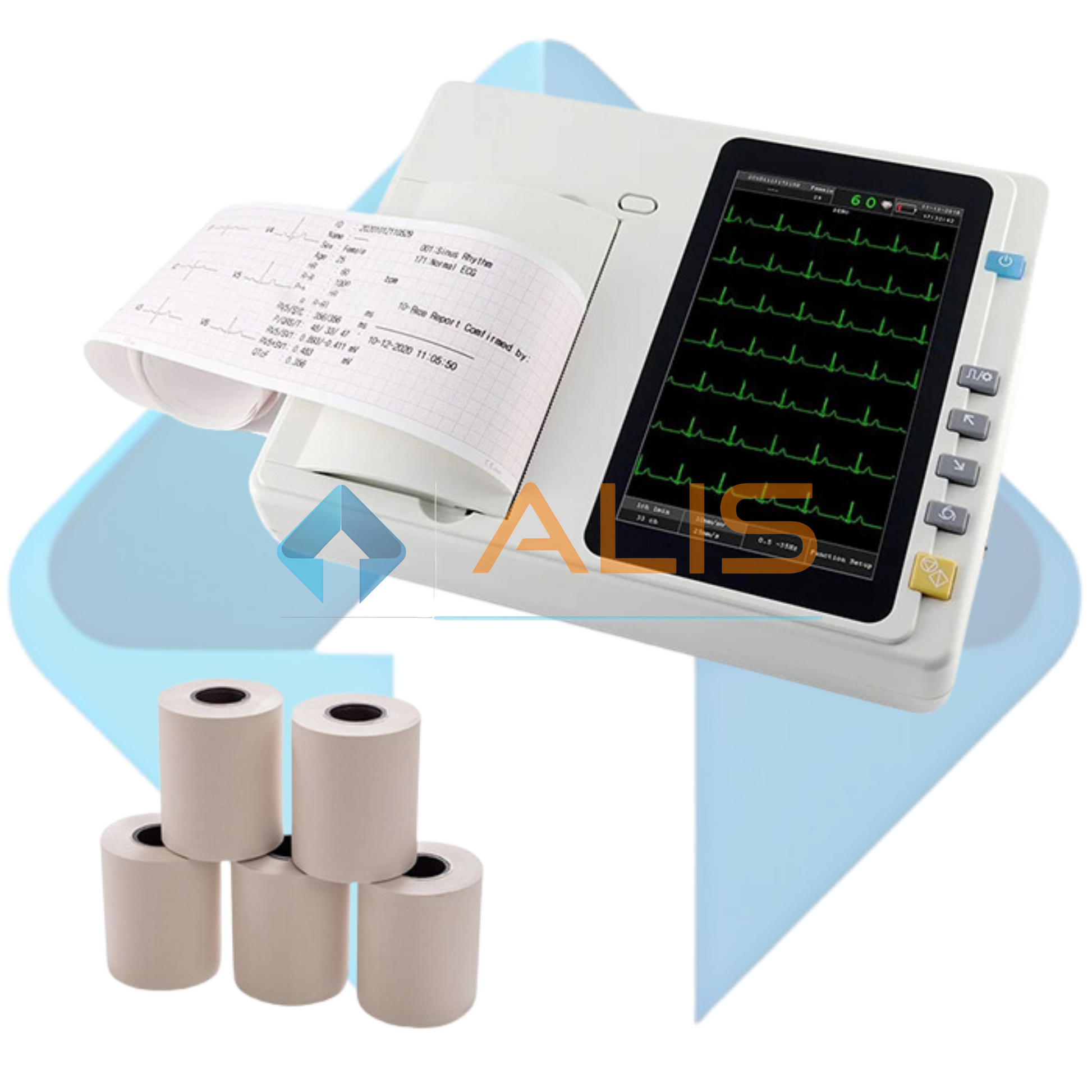

• 7 inch high resolution color touch screen.
• 12 Lead Simultaneous acquisition & display.
• ECG Automatic measurement & interpretation function.
• Complete digital filters, resisting baseline drift, AC & EMG interference.
• Compact & lightweight design.
• Support USB flash disk & micro SD card to extend memory.
• Software upgrade via USB / SD card.
• Built-in rechargeable li-ion battery.

Content in the Box:

• Main Machine: 1 Unit
• Patient cable: 1 Unit
• Limb electrode: 1 set (4 pcs)
• Chest Electrode: 1 Set (6 pcs)
• Power cable: 1 Unit
• 80mm x 20M recording paper: 1 Unit
• Paper axis: 1 Unit
• Power cord: 1 Unit

Technique Specification

• Lead: Standard 12 leads
• Acquisition Mode: Simultaneous 12 leads acquisition
• Measurement Range: ±5mVpp
• Input circuit: Floating; Protection circuit against Defibrillator effect
• Input Impedance: >-50ΜΩ
• Input circuit current: <-0.05μA

• CMRR: <-100dB

• Patient leak current: <-10μA (220V-240V)
• Frequency Response: 0.05Hz~150Hz (-3dB)
• Sensitivity: 2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV (error:±5%)
• Anti-baseline Drift: Automatic
• Time constant: ≥3.2s
• Noise level: >-15μVp-p
• Paper speed: 12.5 mm/s, 25 mm/s, 50 mm/s
• Recording mode: Thermal printing system
• Paper specification: Roll 80mmx20M
• Safety Standard: IEC I/CF
• Sample Rate: Normal: 1000sps/channel
• Power Supply: AC: 100~240V, 50/60Hz, 30VA~100VA
• DC: 14.8V/2200mAh, built-in lithium batterer
• Record mode: Automatic: 3CH×4+1R, 3CH×4, 3CHx2+2CHx3,3CHx2+2CHx3+1R,6CHX2; 3 2CH+1R; Rhythm: Any lead selectable. Manual: CH, 2CH, 3CH+1R,
• Filter: EMG Filter: 25 Hz / 30 Hz / 40Hz/75 Hz / 100 Hz / 150HzDFT Filter: 0.05 Hz/ 0.15 Hz AC Filter: 50 Hz / 60 Hz
