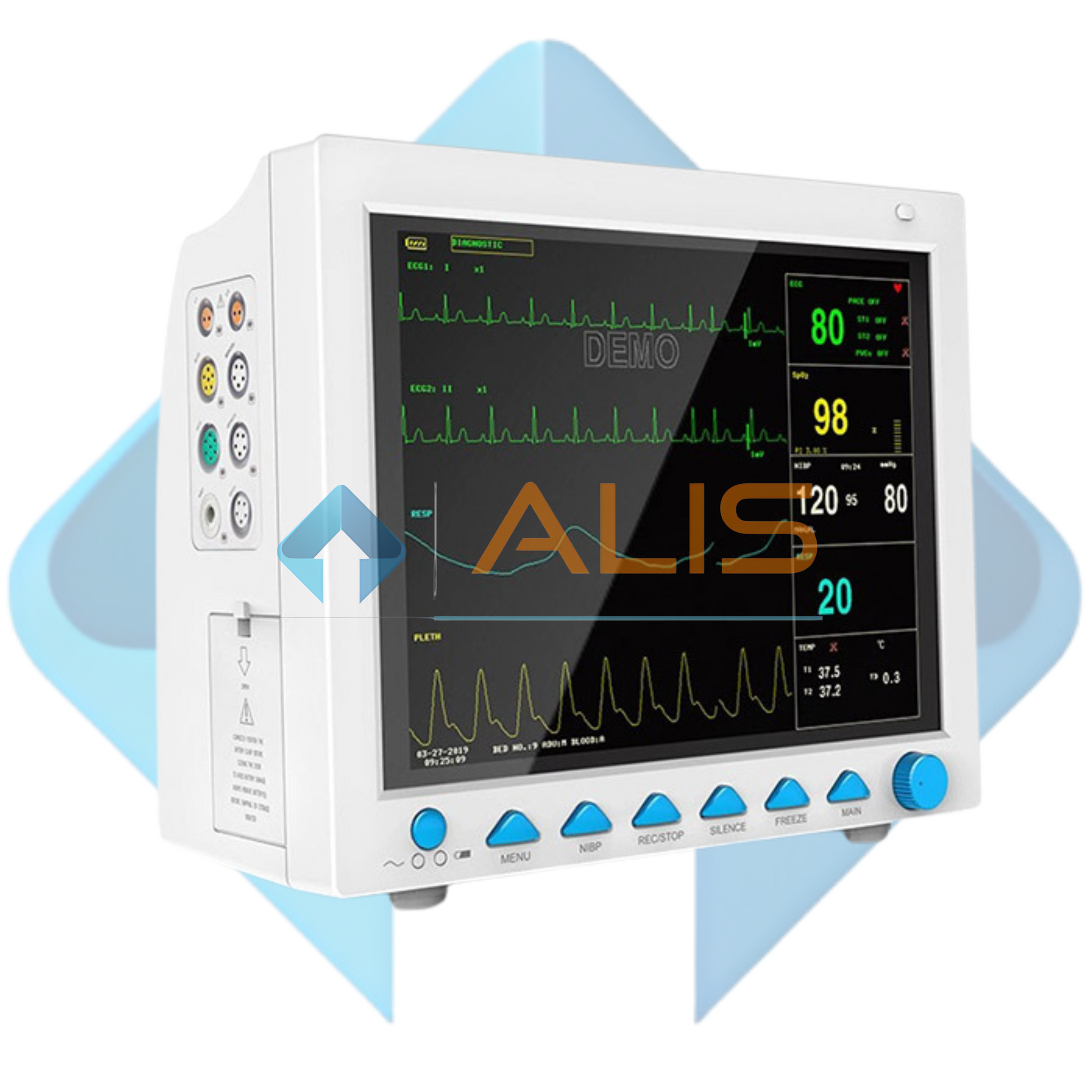

The monitor has abundant function that can be used for clinical monitoring with adult, pediatric and neonate. Users may select different parameter confinguration according to different requirements. The monitor, power supplied by 100-240V ~ ,50/60Hz, adopt 12.1" color TFT LCD displaying real-time date and waveform. It can synchronously display eight - channel waveform and full monitoring parameters equipped with an optional 48mm thermal recorder. The monitor can be connected to the central monitoring system via wire or wirelesss network to form a network such parameter as ECG, RESP, SpO2 & dual - channel TEMP, etc. It integrates parameter measurement module, display and recorder in one device to form a compact and portable equipement. Its replacement internal battery brings lot of convenient for patient moving.

Features:

• 12.1" TFT color LCD, multi - language interface (English, French, German, Italian, Dutch, Russian, Portuguese, Turkish, Spanish(EU), Polish, Romania, Kazakh, Czech, Trad Chinese, Spanish(MX), Bulgarian, Chinese,Ukraine).
• Fanless design, quiet, energy-saving and clean, which reduces the possibility of cross - infection.
• All - round  monitor for adult, pediatric and neonate.
• With standard interface, oxygen graph, trend graph, big character interface and view bed, convenient to observe.
• Finish all operations by keys, and knobs.
• Maximum 8 - channel waveform synchronous display.
• Display 7 - lead ECG waveform on one screen, cascade ECG waveform display.
• Adopt digital SpO2 technology, anti - motion and anti - ambient light interference, and measurement can be performed under the circumstance of weak filling.
• Heart rate variability (HRV) analysis function.
• NIBP measurement mode: Manual/AUTO/STAT, storage for 4800 - group NIBP data.
• Review for 71 alarm events of all parameters and 60 arrhythmia alarm events.
• Drug concentration calculation and titration table functions.
• One touch printing of trend graph.
• Connect to central Monitoring System by 3G, Wi-Fi or wired mode.
• AC/DC, built in rechargeable lithium battery achieve uninterrupted monitoring.
• Anti - high frequency surgical unit, defibrillation proof (special leads are necessary).

Functions:

• Standard parameters: ECG, RESP, SpO2, PR, NIBP, dual channel TEMP.
• ECG: Heart rate(HR); ECG waveform & Arrhythmia and ST - segment analysis.
• RESP: Respiration rate(RR); Respiration waveform.
• SpO2: Oxygen saturation(SpO2); Plethysmogram(PLETHM) waveform; Pulse rate(PR) & Bar graph.
• NIBP: Systolic pressure(SYS); Diastolic pressure(DIA) & Mean pressure(MEAN).
• TEMP.: T1; T2 & TD.
• IBP(optional): CH1: SYS, DIA, MAP; CH2: SYS, DIA, MAP & IBP waveform.
• Co2(optional): EtCo2; InsCo2; Inspired Minimum CO2 & AwRR: Air Way Respiration.
