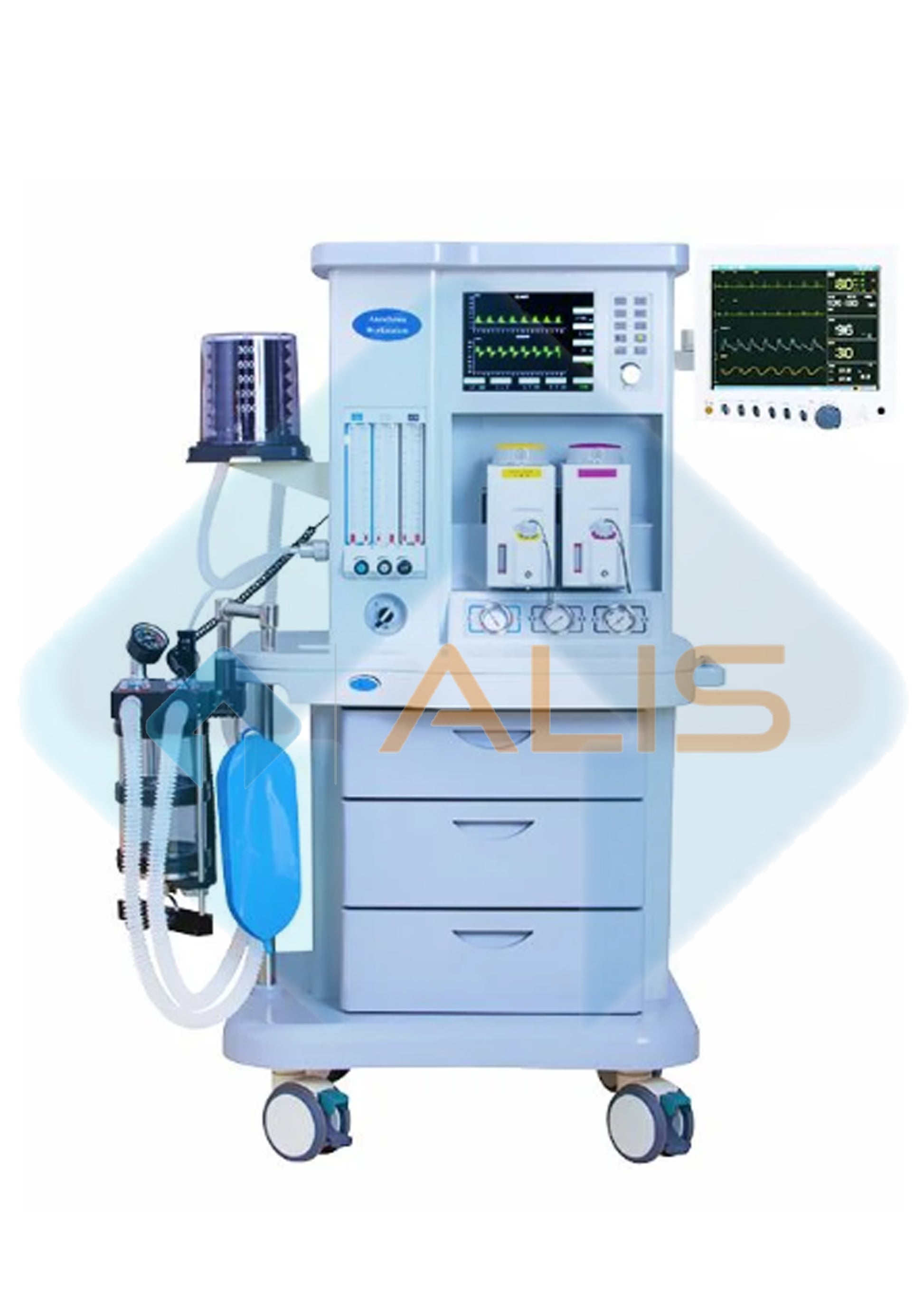

Technical Specification:

• Two Gases Rotameter Oxygen & Nitrous-Oxide
• Oxygen Flowmeter range 100 cc/min. to 10 litres/min., Nitrous Oxide Flowmeter range 200cc /min. to 12 litres/min.
• Standard Fresh Gas Outlet.
• Change Over System Open Circuit to Close Circuit.
• Emergency Flush Valve at front Panel connected to incoming O2 supply
• Goldman type Halothane Vaporizer.
• Parking space for two additional Vaporizers.
• Non-return cum Pressure Relief Valve minimize risk of back flow of gases.
• Blows off valve when pressure exceeds 200cm of water column fitted.
• Provision to fit Ventilator.
• Provision to fit Carbon Dioxide Absorber.
• Extended platform at rear for two 'B' type cylinder.
• Table top made of Stainless Steel.
• Top Tray provided at eye lavel for keeping Monitoring Equipments.
• Maggill's or Bains circuit.
• One spacious Drawer on smooth runner.
• Four Castor Trolley with front two lockable Wheels.
• Pin Index Yokes two for Oxygen and two for Nitrous Oxide.
• High-efficiency Regulators for reliability two each for O2 & N2O.

Safety Features

• N2O cut off in case failure of Oxygen supply.
• Low Pressure Oxygen Audible Alarm.

Note: Cylinders, Circle Absorber, & other items as mentioned above Specifications / Picture are supplied at EXTRA COST.

Same Model also available in Stainless Steel Frame
