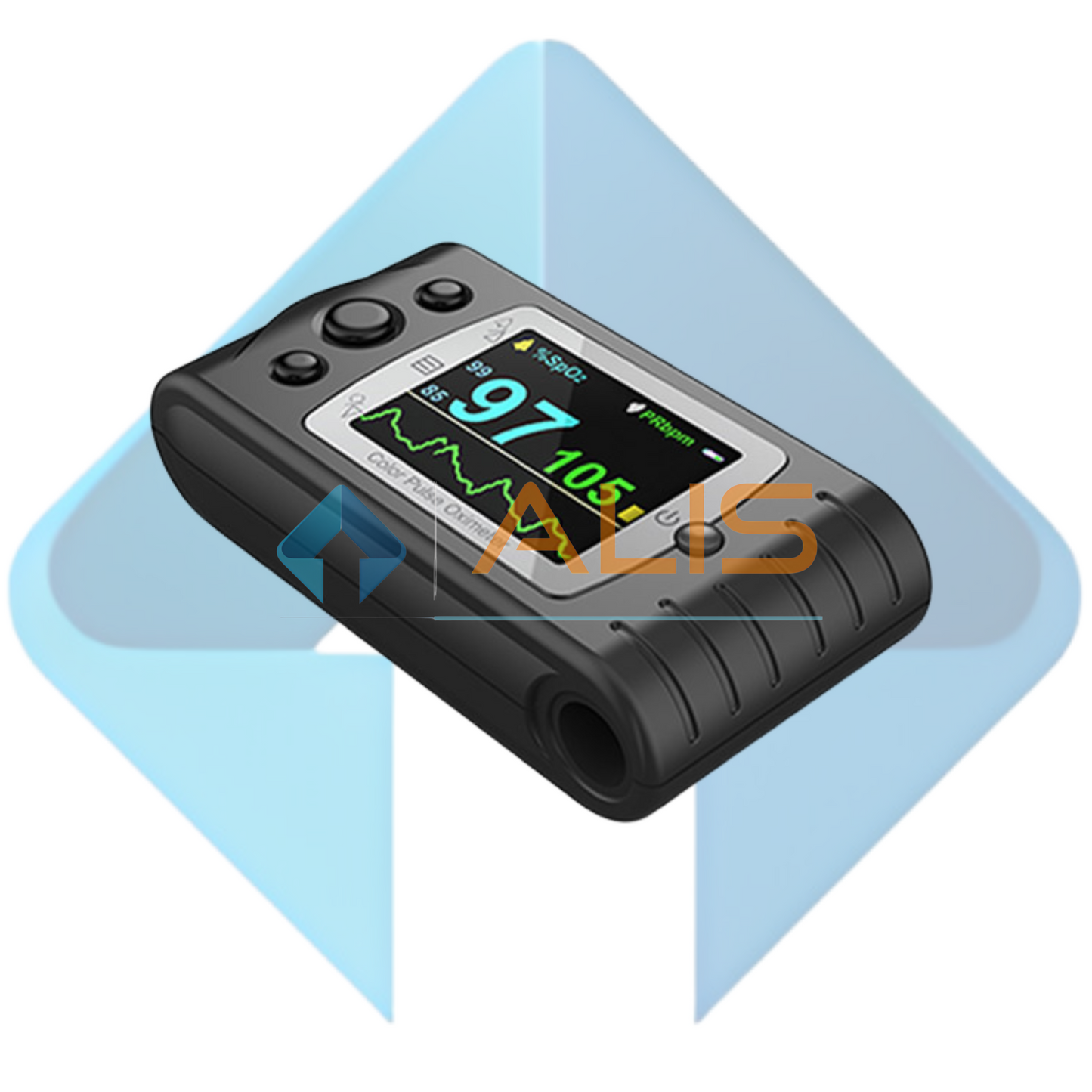

The CMS60C Pulse Oximeter adopts Photoelectric Oxyhemoglobin Inspection Technology in accordance with Capacity Pulse Scanning & Recording Technology, which can be used to measure human oxygen saturation and pulse rate through finger. The device is suitable for being used in hospital, oxygen bar, community healthcare and physical care in sports, etc. (It can be used before or after exercise, but not recommended to use during exercising).

FEATURES:

• Small in volume, light in weight and convenient in carrying
• Easy to operate, low power consumption
• SpO2 value display

• Pulse rate sound indication
• Battery capacity indication
• Data transmission in real-time
• Data storage function, stored data can be uploaded to computer
• Function switch to activate measurement and turn off the power
• function key for menu setting
• Free software to upload and analyze up to 24 hours of data at a time
• Dual direction display with three adjustable brightness levels
• 4 parameters readings (SpO2, PR, Bar graph, Pulse waveform)
• Alarms (auditory and visual) when pulse rate or SpO2 falls below preset levels
• Pulse sound function
• Suitable for adult, pediatric and neonatal, an adult probe is included

SPECIFICATIONS:

• SpO2 Range: 35%-99%
• Resolution :±1%
• Accuracy: ±2% (70??99?)<70%, unspecified
• Pulse Rate Range:30bpm-250bpm
• Resolution:1bpm
• Accuracy: ±2bpm or ±2% (select larger)
• One rechargeable lithium battery
• Size: 87*45*22mm
• Display Type:1.8' 65K Colour TFT
• Parameter: SpO2 (2-digit), PR (3-digit), bar graph, Pleth waveform
• Adjustable brightness level
• 1 year limited manufacturer warranty

PERFORMANCE

• Display mode: 1.77" TFT color screen
• Screen resolution: 128*160
• SpO2 measuring range: 0%~100% (resolution is 1%)
• Accuracy: 70%~100%: ±2%, Below 70% unspecified.
• PR measuring range: 30bpm~250bpm (resolution is 1bpm)
• Accuracy: ±2bpm or ±2% (whichever is greater)
• Measurement performance in weak filling condition: SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2bpm or ±2% (whichever is greater).
• Resistance to surrounding light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1%.
• Voltage: DC 3.6V~4.2V
• Power supply: 3.7V rechargeable lithium battery × 1
• Battery working hour: 26 hours in theoretical
• Battery service life: no less than 500 times of charge and discharge
• Safety type: Internally powered equipment, Type BF applied part

Physical characteristic:

Dimension: 87(L) × 45(W) × 22(H) mm
Weight: about 75g (with one lithium battery)

CONTENT OF BOX:

• User Manual 1pc
• Lithium battery 1pc
• Power adapter 1pc
• Data line 1pc
• (PC software) 1pc
• Probe 1pc
• Optional:
• Other SpO2 probes
