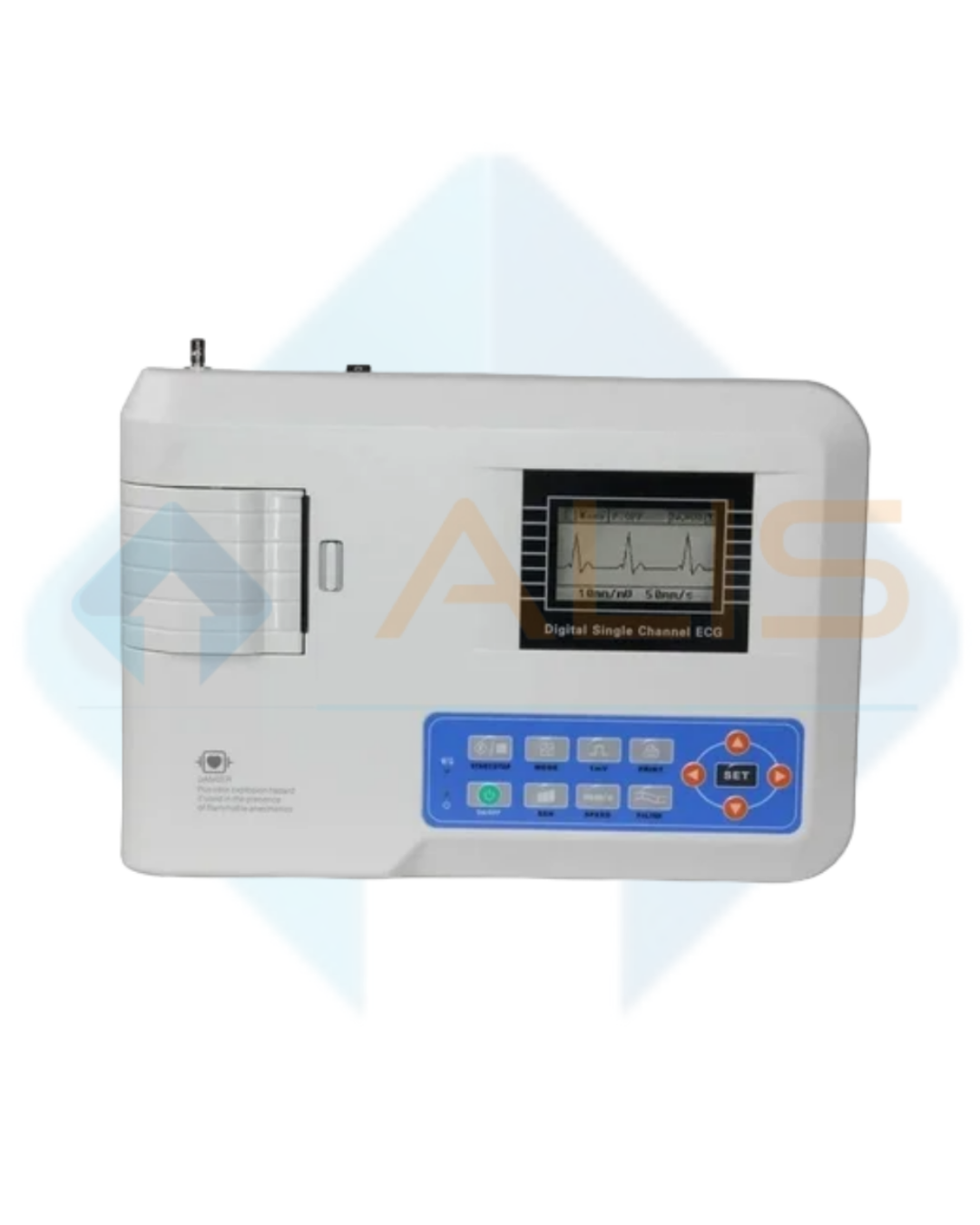

ECG100G is a kind of single channel electrocardiograph, which features in printing ECG waveform by thermal printing system, prompting for "Lead off" or "Lack of paper", multi-language interface, recording ECG waveform in AUTO/Manual mode, convenient to operate.

Function

1. Adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.
2. Adopt high-resolution thermal printing system(8 dot/mm), no need for any adjustments. Recording frequency: up to 150Hz.
3. Real-time and continuously record the clear and accurate ECG waveform and annotation character(including lead mark, sensitivity, paper speed and filter state, etc.).
4. In AUTO mode, finish recording by pressing the button once, which improves work efficiency.
5. Multi-language (Chinese, English, French, Italian, German, Spanish and Turkish) interface and report.
6. In optimal DC state, up to 7-hour standby time, continuous print up to 4-hour, record up to 150 ECG waveform.

Performance

• Input mode: floating and defibrillation protection
• Frequency response: 0.05Hz ~ 150Hz(-3dB~+0.4dB)
• CMRR: >60dB, >100dB(add filter)
• Time constant:≥ 3.2s
• Patient leak current: <10µA
• Calibration voltage: 1mV
• Sensitivity: 5, 10, 20 mm/mV ±5%, standard sensitivity: 10mm/mV±2%
• Noise level: ≤15µVp-p
• Input circuit current: ≤50nA
• Input impedance: ≥50MΩ
• Sampling accuracy: 12-bit
• Safety classification: class I, type CF and defibrillation-proof applied part
• Recording mode: thermal printing system
• Paper size: 50mm(W)×20m(L)
• Sampling frequency: 800Hz
• EMG interference filter: 35Hz (-3dB)
• Power frequency filter: AC 50Hz/60Hz(-20dB)
• Paper speed: 25, 50mm/s, ±5%
• Power supply:
• AC: 100V~240V(50/60Hz)
• DC: 7.4V/2000mAh rechargeable lithium battery
• Fuse specification: two AC time lag fuse(φ5×20mm), T1.6AL250V
• Waterproof degree: IPX0
• Working mode: continuous working

Accessories

• Standard
• A lead cable
• A limb electrode
• A chest electrode
• A thermal recording paper
• A power cord
• An earth wire
• A user manual （GB only） on request for other Language

Physical characteristic

• Working environment
• Temperature: 5℃~40℃
• Relative humidity: 25%~95%(non-condensing)
• Atmospheric pressure: 700hPa~1060hPa
• Transport and storage environment
• Temperature: -40℃~+55℃
• Relative humidity: ≤95%
• Atmospheric pressure: 500hPa~1060hPa
• Dimension: 315mm(L) × 215mm(W) × 77mm(H)
• Weigh: 1.5Kg
