PRODUCT DETAILS :

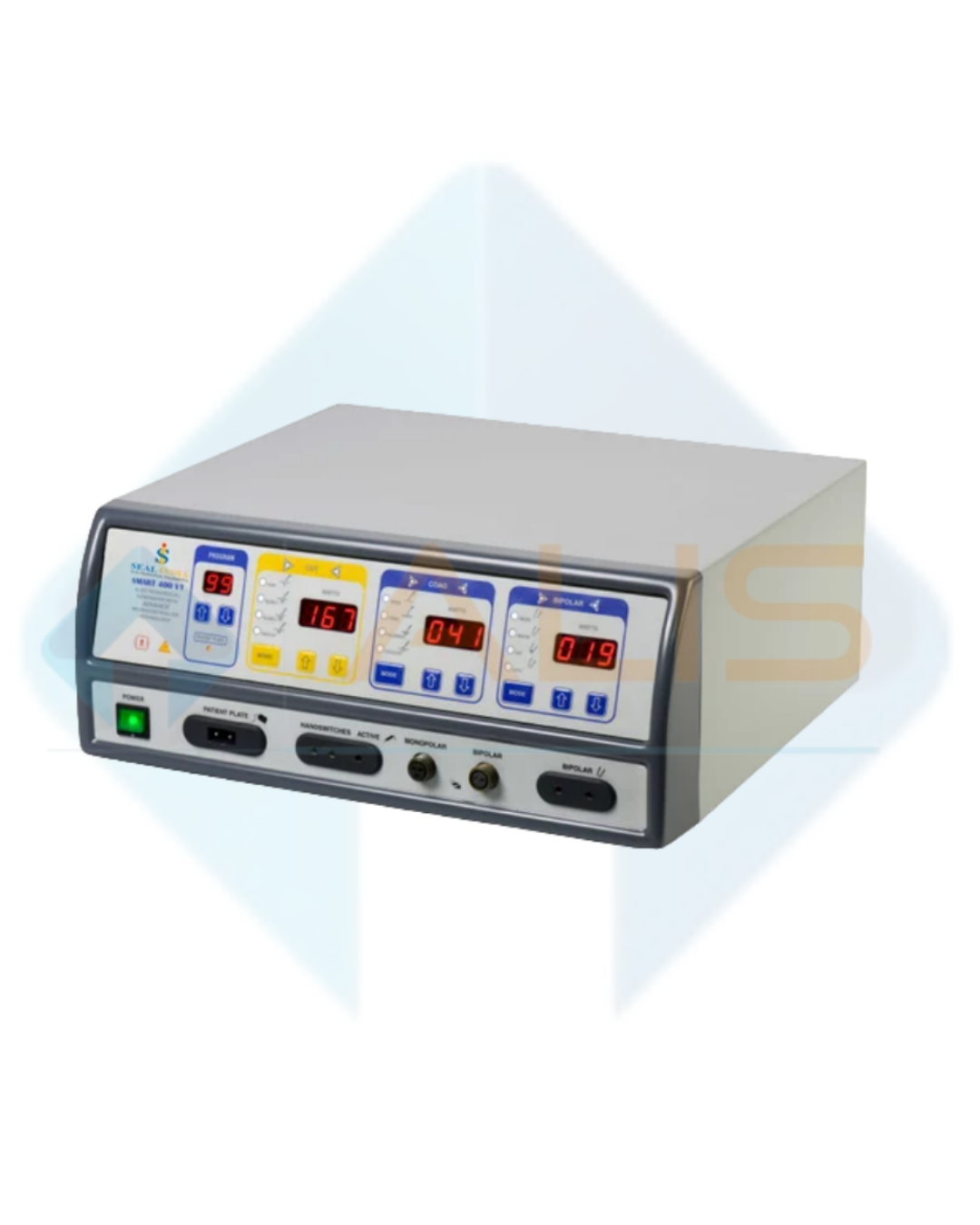

The 400 DX+ is a 400-watt high power, operating room generator/electrosurgical unit. The unit consists tissue impedance monitoring system, self-adjustment of power output to reduce the continuous power setting for different tissue needs, to provide user consistent performance with all digital displays of power and modes. The system delivers 9 monopolar and bipolar RF energy modalities to provide a high level of surgical precision. Engineered with the safety of the patient in mind.

SPECIAL FEATURES :

• A tissue sensing technology used for all applications to deliver user consistent performance.
• Reduce the frequent adjustment of power setting as the tissue changes.
• Reduce the risk of collateral tissue damage due to sparkles and charring free power.
• Minimize the patient recovery time by performing precise and clean cutting and coagulation.
• Minimum RF distortion in other O.T. Equipment.
• Patient plate fault monitoring system.
• The auto-monitoring facility displays different error codes if any error occurs during use.
• Two independent power activation of monopolar output, hand switch operation, and footswitch operation.
• Separate bipolar generator with foot switch operation

TECHNICAL DATA
Input: 220/240 VAC / 50Hz
Power Consumption: 750 VA Max.
Protection Class: 1
MDD: IIB
Input Fuse: 6 AMP
Output Control: Digital Display
Nominal Frequency: MDD360Khz
Max. Output Power: 400 W
Basic Construction: IEC-60501-1, IEC-60601-1-2
Dimension: 390*130*340mm
Ambient Temperature: 30-40 Deg. C
Weight: 6.5 Kg.
