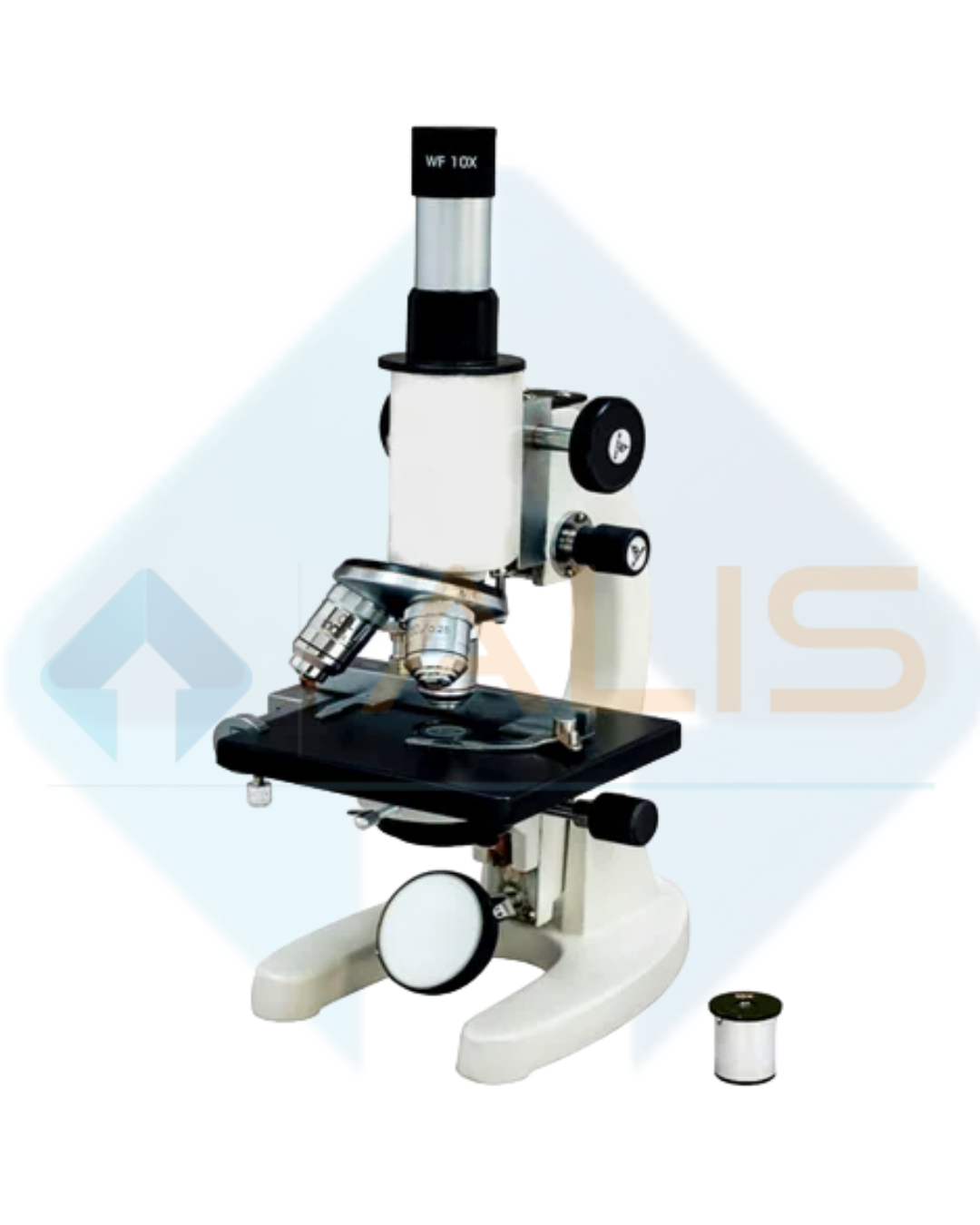

Observation tube: Monocular Observation tube inclinable up to 90° and its Mechanical tube length 160mm.
Nosepiece: Triple revolving nose piece with accurate centring and positive click stops
Focusing controls: Coarse Focusing by Rack & Pinion motion with screw lock to prevent damage the slides. And fine focusing Motion by screw lever system with sensitivity of 0.002 mm..
Specimen stage: Fixed Square stage of 120 x 120 mm with detachable graduated Mechanical Stage having X and Y movements.It comes with Sub stage Moveable ABBE condenser N.A. 1.25 Fitted with double lens with Iris diaphragm to control the aperture and filter mount, which can be moved through Rack & Pinion motion by a knob on left side.
Light source: Illumination by plano-concave reflector mirror of 50mm diameter. (Interchangeable for electric illuminator 220 V- 15 W directly workable on mains)
Optical Combination: High Grade Achromate adjustable Objectives & Eye Pieces are used for true colour & contrast.
Objectives: A-grade Achromatic lens 10x, 40x/45x (SL) and 100x (SL)
Eye Pieces: Huygenian 5x and W.F.10x each.
Magnification : 100x to 1000x
Our objectives and eyepieces are well parafocalised and Antifungal treated as well as Blue coated.
Packing: Complete microscope packed in export-worthy thermocole case and Supplied with dust cover, cleaning cloth, lens cleaning paper, Immersion oil for objectives 100x & operating manual in English
